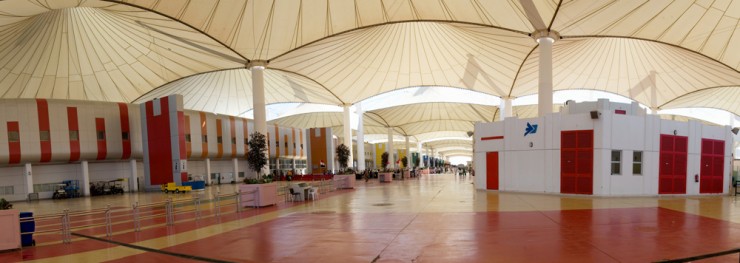

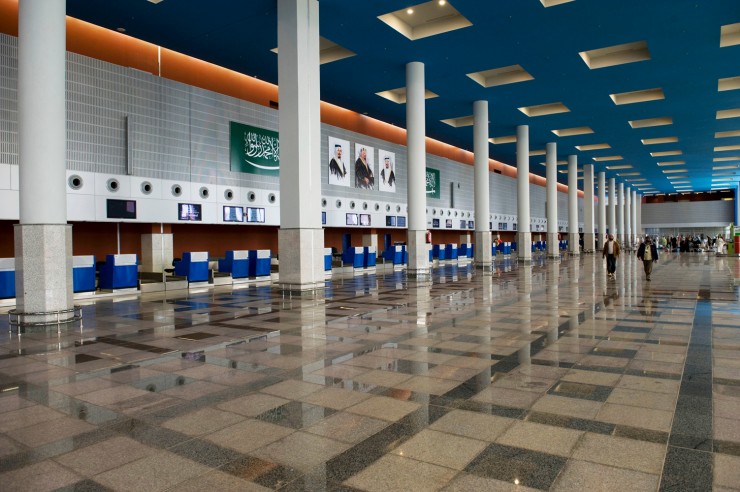

Market Airport Facility Systems Integration   Location Jeddah – Saudi Arabia

Description

• Terminal Built‐up Area: 70,000 square meters
• Terminal capacity:
• Arrival: 3,800 passengers / hour
• Departure: 3,500 passengers / hour
• Unique worldwide design: Entire terminal can be switched between arrival and departure moods

Services

• Converged IP Network with wireless coverage
• Over 4,500 service outlets
• Record implementation for first phase (4 months–design to deployment) in a comprehensive pre‐staging approach
• Design development and coordination in one month time (parallel to construction schedule)
• Services Implemented:

1. IP Access Control System
2. IP CCTV System
3. IP Public Address System
4. Fire Alarm & Detection System
5. IP Master Clock System
6. IP Telephony System (Wired & Wireless)
7. IP Advertisement System
8. Wireless Local Area Network (WLAN)
9. High Speed Internet Services
10. Data Services
11. Airport Operation Database (AODB)
12. Flight Information Display System (FIDS)
13. Baggage Information Display System (BIDS)
14. Common Use Terminal Equipment (CUTE)
15. Baggage Reconciliation System (BRS)
16. Resource Management System (RMS)
17. Visual Guidance Docking System (VGDS)
18. Gate Management System (GMS)
19. Building Management System (BMS)
20. Security Screening System





 Pre‐Design, Design, Build, and Operation all done by BTAT
